Specification:
· Can be stopped at any position in the stroke
· Great locking force after stopping
· Widely used in medical equipment, automobile, furniture and other industries
Lockable Type Gas Spring
Specification:
· Can be stopped at any position in the stroke
· Great locking force after stopping
· Widely used in medical equipment, automobile, furniture and other industries
Product Details
 |  |
Product Data
■ Lockable Type Gas Spring

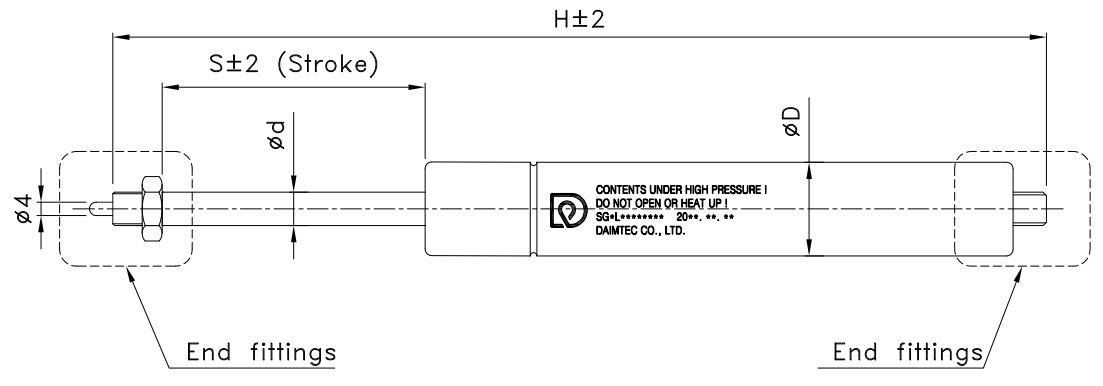

| Model Series | Ød | ØD | S | H | F1(N) |
| DG3L - | 10 | 22 | 20~200 | 100~500 | 150~400 |
| DG4L - | 10 | 28 | 20~400 | 100~1000 | 150~800 |
| DG4L - | 12.5 | 28 | 20~400 | 100~1000 | 150~1200 |
| DG5L - | 10 | 24 | 20~400 | 100~1000 | 150~1400 |
