Specification:
· Automatically returns to the original position
· Fixed height
· Office chairs
Return Cylinder
Specification:
· Automatically returns to the original position
· Fixed height
· Office chairs
Product Details
Product Data

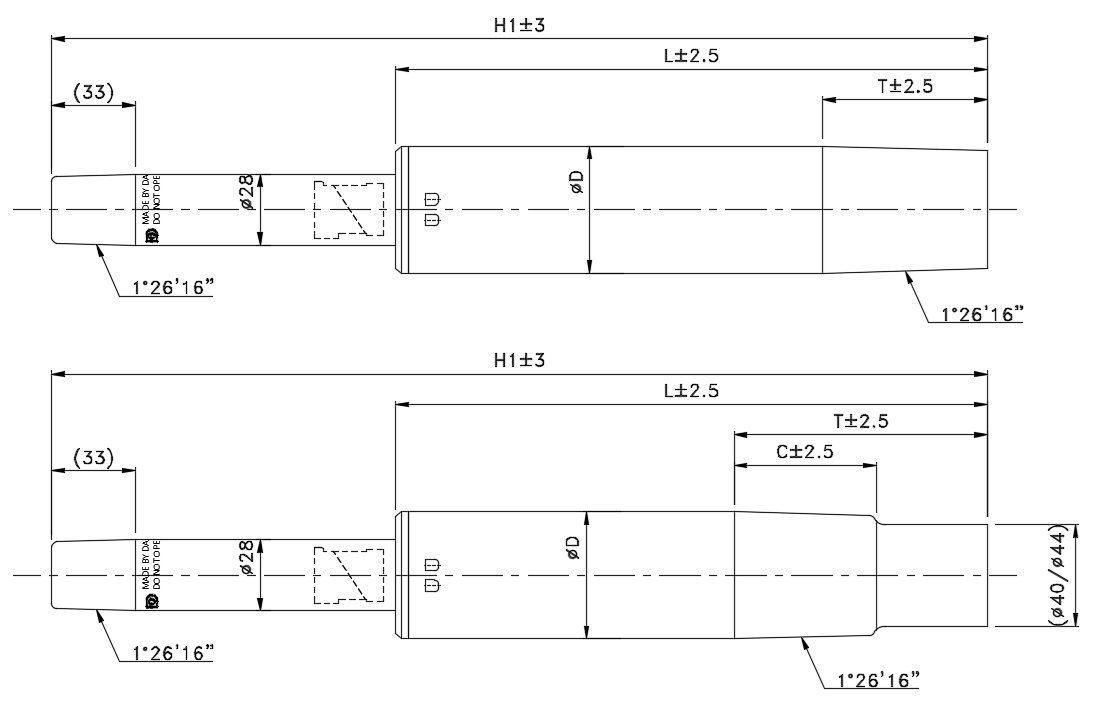

■ Return Cylinder
| Step | H | S | ØD | L | T | C | F1(N) |
| 1 | 245~767 | - | Ø40 | 145~405 | 40~65 | - | 0/350~450 |
| 245~767 | - | Ø45 | 145~405 | 30~70 | - | 0/350~450 | |
| 245~767 | - | Ø50 | 145~405 | 30~95 | - | 0/350~450 | |
| 2 | 245~767 | - | Ø40 | 145~405 | 80~146 | 68 | 0/350~450 |
| 245~767 | - | Ø45 | 145~405 | 75~130 | 56 | 0/350~450 | |
| 245~767 | - | Ø50 | 145~405 | 75~172 | 56 | 0/350~450 |
